AB TYPE of Double End Tenoner features the assembled-type base design that utilizes wide base stands that allow the ideal solution for expanding functionality with each pass through the machine with an increased capacity of housing up to 7 + 7 working units. With a wide range of working units to choose from, namely, saw units, profile moulding units, tenoning units, profile sanding units, top and bottom chamfering units, drilling units, etc, every DET is fully customizable to suit highly specific machining requirements. Hsk 63F spindles and NC positioning via servo with programmable recipe inputs can be added for quick tooling changeover to facilitate efficient small batch manufacturing.

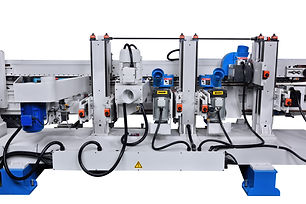

Double End Tenoner Assembled Base
​Sample Working Configuration

Sample Working Configuration

Position1-Scoring Saw System
Position2-Main Saw System
Position3-First Moulding System
Position4-Second Moulding System
Position5-Belt Sanding System (Standard-Type)
Position6-Belt Sanding System (Wide-Type)
